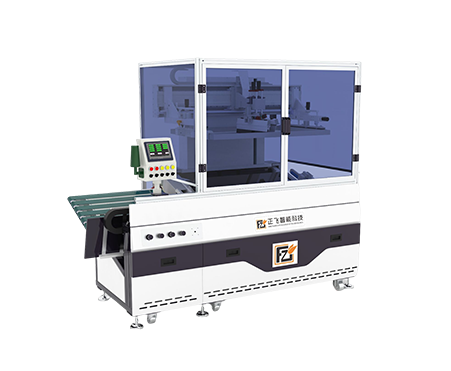

In modern manufacturing, the demand for personalized customization and small batch production has surged, and traditional screen printing equipment is difficult to adapt to market changes due to low switching efficiency and complex operation. The automatic screen printing machine has made breakthroughs in modular design, digital control, intelligent calibration and other technologies, reducing the switching time of patterns or products from the traditional hourly level to the minute level, significantly improving production flexibility. The implementation path is analyzed from three aspects: technical principles, core methods, and practical applications

1、 Technical principle: Integration of standardization and intelligence

Modular structural design

The automatic screen printing machine adopts the concept of "independent functional modules" and designs key components such as screen fixtures, scraper systems, and printing tables as standardized modules that can be quickly disassembled and assembled. For example, when replacing the screen, simply release the buckle, remove the old module, and install the new module without recalibrating the mechanical parameters. Some high-end models even support the "one click pop-up" function, further simplifying operations.

Digital parameter storage and retrieval

The control system is equipped with multiple sets of process parameter databases, which can store information such as printing pressure, scraper speed, ink type, etc. for different patterns. When switching, the operator selects the preset program through the touch screen, and the system automatically matches all parameters to avoid manual adjustment errors. For example, a certain brand of equipment supports storing over 200 sets of formulas, with a switching response time of only 15 seconds.

2、 Core Method: Four Major Technological Breakthroughs

Quick positioning and visual calibration

Laser positioning system: By scanning the edge of the substrate with laser, a reference coordinate system is automatically generated to ensure that the alignment accuracy between the new pattern and the old position reaches ± 0.05mm.

AI visual compensation: The camera captures real-time deformation of the substrate (such as thermal expansion and contraction of curved objects), and the algorithm dynamically adjusts the printing path to reduce the number of trial prints.

Intelligent management of ink system

Automatic cleaning and color change: Integrated ink circulation pipeline and solvent cleaning module, automatically drains residual ink and cleans the pipeline during color change, taking only 3 minutes (traditional manual cleaning takes 30 minutes).

Ink pre mixing technology: Based on the new pattern color formula, the system automatically mixes the base color ink to avoid manual color adjustment errors.

Adaptive tension control system

The tension of the screen directly affects the printing quality. The automatic screen printing machine is controlled by a pressure sensor and servo motor in a closed-loop manner, and automatically adjusts the tension to the preset value within 5 seconds after switching the screen, without the need for manual intervention.

Human computer interaction optimization

Using a graphical wizard interface, guide the operator to complete the switch step by step (such as "remove the old screen → install the new screen → call the formula → start calibration"). Some devices support voice prompts and error diagnosis animations to reduce operational difficulty.

3、 Practical application cases and benefits

Electronics industry: A certain circuit board manufacturer has reduced its daily production capacity by 40% by using an automatic screen printing machine to switch resistance identification patterns from the traditional 2 hours to 8 minutes.

Packaging industry: A cosmetics box printing company achieved switching between 6 different logos within 10 minutes, meeting the "one-stop dropshipping" needs of e-commerce platforms and increasing order response speed by 70%.

Automotive parts: When printing curved instrument panels, the visual system automatically compensates for surface deformation, reducing the switching time from 45 minutes to 12 minutes and increasing the yield rate from 85% to 98%.

4、 Future trend: moving towards' zero switching '

Internet of Things (IoT) collaboration: Docking with ERP systems, automatically obtaining order information and preloading corresponding formulas, achieving seamless integration of the entire process of "production instructions equipment adjustment printing execution".

Robot assisted replacement: Integrated collaborative robots automatically complete the disassembly and installation of components such as screens and scrapers, further freeing up manpower.

Predictive maintenance: By monitoring the lifespan of key components through sensors, advance replacement reminders are pushed to avoid switching failures caused by component wear.

summarize

The fast switching technology of automatic screen printing machines has completely overturned the traditional production mode of screen printing through deep integration of hardware modularization, intelligent control, and standardized processes. For enterprises that require frequent pattern changes or small batch multi variety production, this technology not only significantly reduces labor costs and time consumption, but also endows the production line with agility in responding to market changes. In the future, with the penetration of AI and IoT technologies, automatic screen printing machines are expected to achieve the ultimate goal of "zero switching time", promoting the development of manufacturing towards higher efficiency and flexibility.
